PC Case 2E ALFA (Е1802-500) 2E-E1802-500

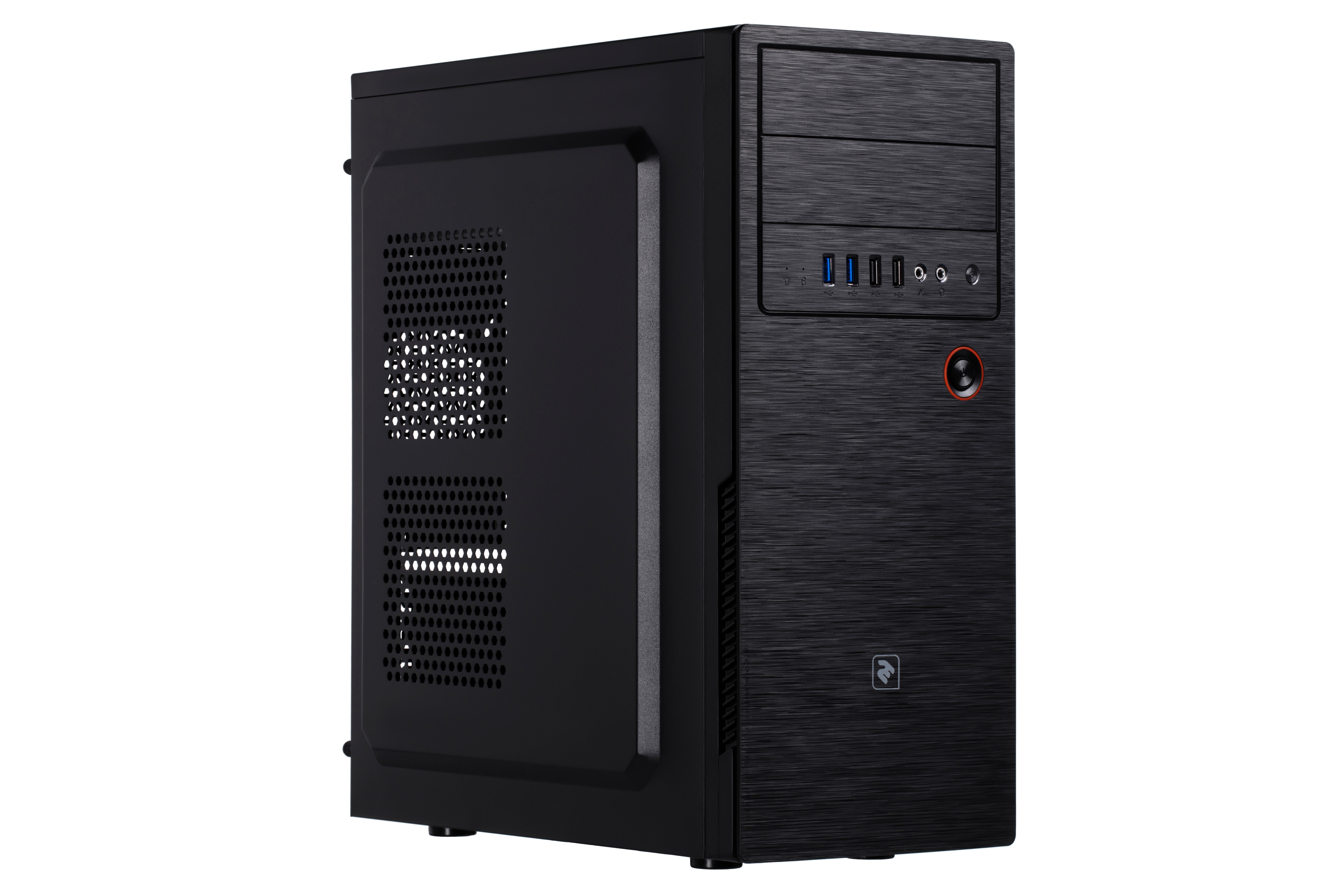

2E ALFA (E1802-500) PC case with built-in PSU and classic stylish front panel, is an ideal choice for individual and industrial assembly, thanks to its rationally organized interior space and intuitively simple design. Made of 0.45 mm steel. Mid Tower chassis form-factor is compatible with ATX, Micro ATX, Mini ITX motherboards.
| Brand | 2E |
| Series | ALFA (Е1802-500) |
| Type | Mid Tower |
| Material | Plastic, steel |
| Motherboards | ATX, Micro ATX |
| External 5.25″ | 2 |
| Internal 2.5″ | 3 (4) pcs |
| Internal 3.5″ | 2 (1) pcs |
| Expansion slots | 7 pcs |
| Optional fans, mm | Front panel: 2х 120, Side panel: 2х 120, Rear panel: 1x 80 (90), Top panel: non |
| Optional radiators, mm | Non |
| Included fans, mm | Non |
| I/O Ports, buttons | 2xUSB 2.0, 2xUSB 3.0, HD Audio+MIC/Power, Reset, Power LED, HDD LED |
| Power supplier,W/ place | On top |
| Integrated power supply | Power supply (max.): ATX Power supply: 2E ATX500W -Peak power: 500 W -Rated power: 250 W -Matte Power Connector: 24 pin -Processor Power Connector: 4 pin -Video card power connector: no -Peripheral/FDD/SATA Connectors: 1/0/3 -Power supply cooling: 1x80 mm fan |
| Form factor compatible power supply | ATX |
| Max VGA length, mm | 320 |
| CPU cooler height, mm | 148 |
| Dust filter | No |
| Dimensions (WxHxL), mm | 191x417.5x358 |
| Weight, kg | 3.43 |
| Manufactured | China |
| Warranty | 12 months |
| Package dimensions (WxHxL), mm | 222x450x408 |
| Package weight, kg | 4.07 |
2E ALFA (E1802-500) is a perfect option for assembling a universal home or office system, as well as a budget, mid-range workstation. This case model supports mounting of sufficient number of drives and numerous expansion cards (7 expansion slots), as well as a video adapter up to 320 mm long.
The case provides enough space for neat cable management, you can install up to 5 fans, and processor cooling system up to 148 mm high. For connecting, control and monitoring of computer peripherals there are connectors 2xUSB 3.0, HD AUDIO+MIC, buttons and indicators Power, Reset, Power LED, HDD LED in this chassis. A PC case 2E ALFA (E1802-500) goes with built-in power supply unit with a capacity of 500W – top-mounted. The model scope of delivery includes instructions and a screw set.
